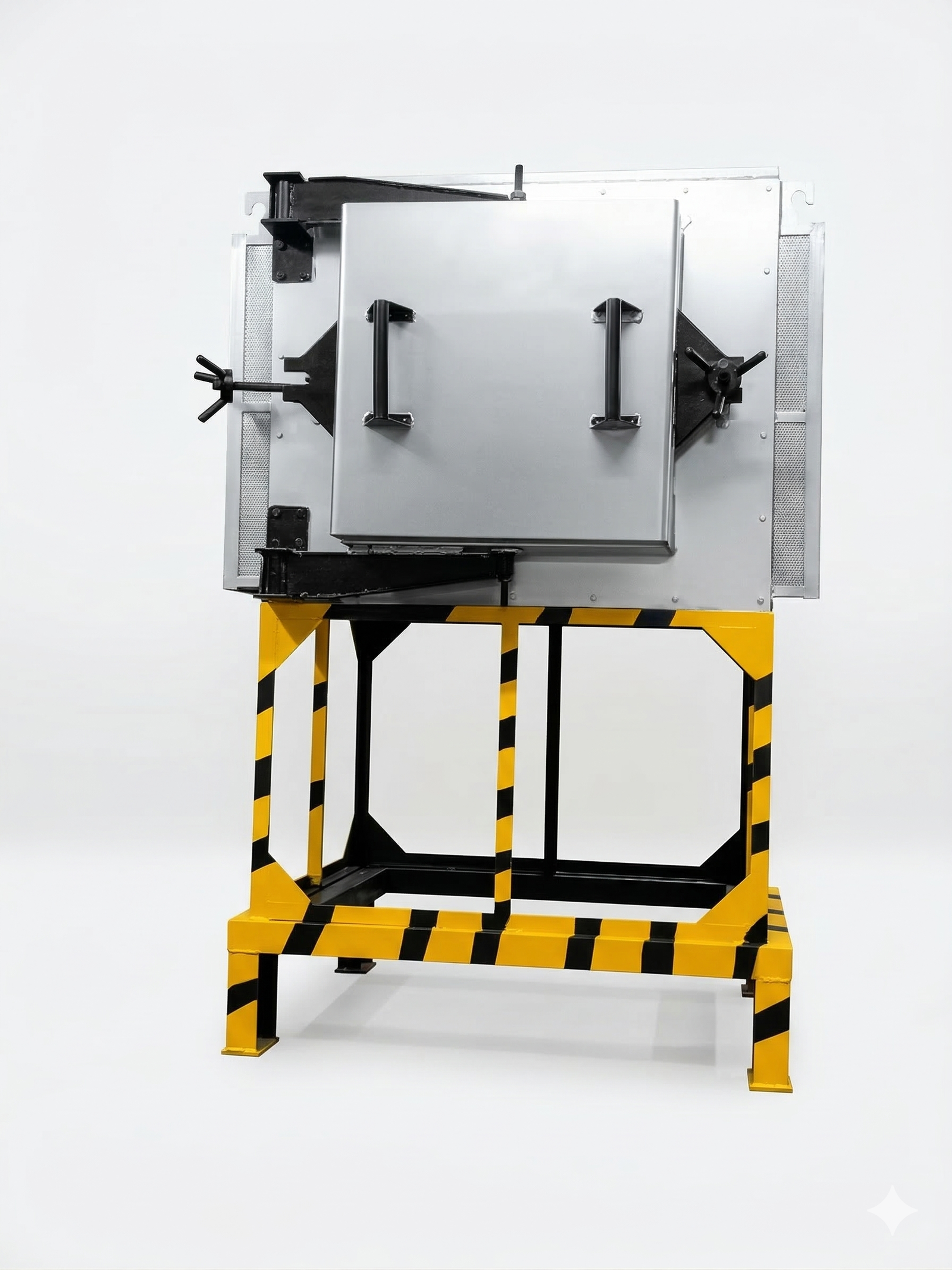

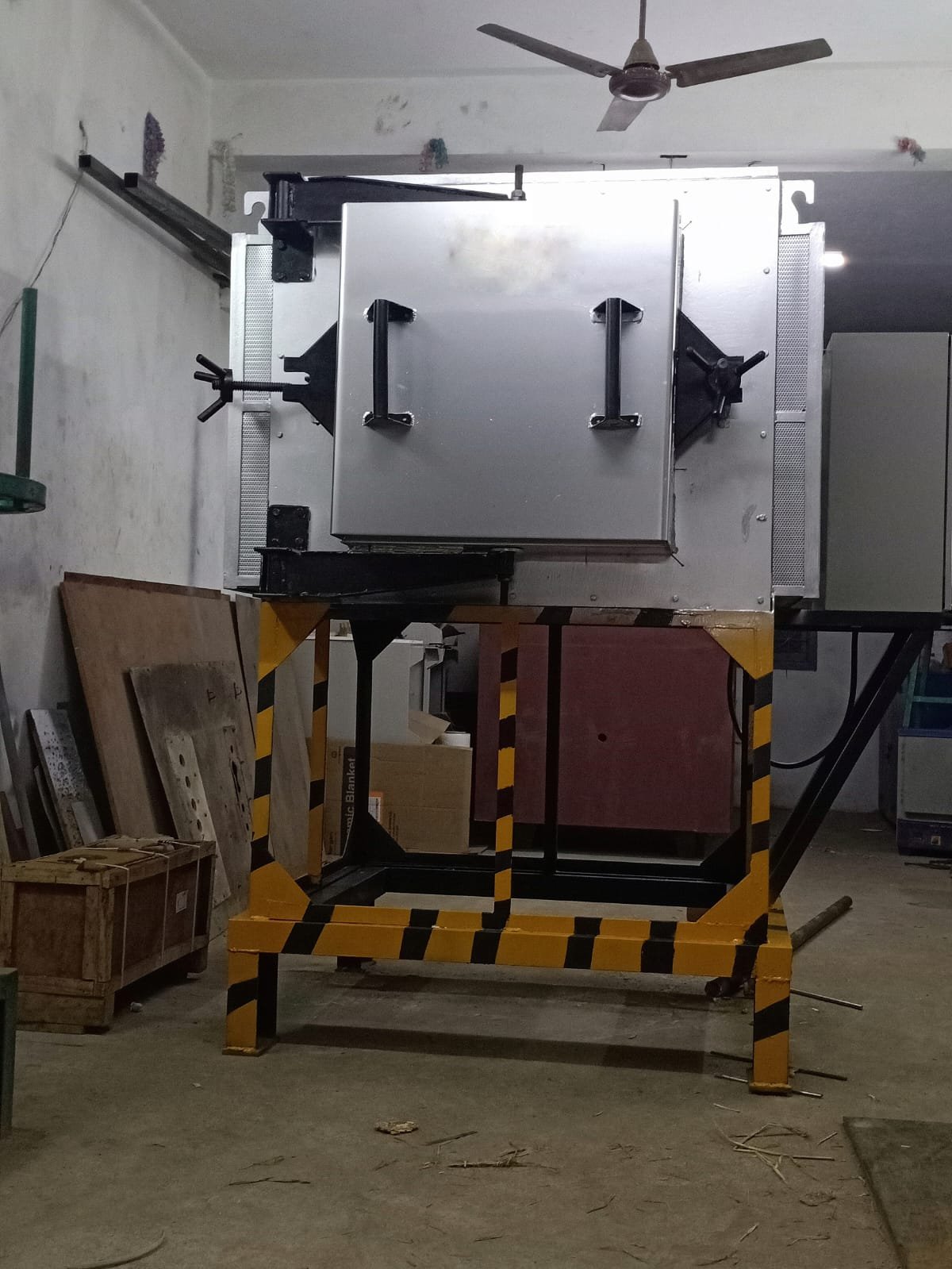

REFRACTORY FURNACE UPTO 1400 Deg C

The Refractory furnaces are engineered to achieve exceptionally high temperatures for the heating of materials while maintaining effective separation from fuel and combustion byproducts. This isolation not only minimizes the risk of cross-contamination but also enables a more precise analysis of the specific properties of the materials involved.

Features:

• The housing is constructed from a heavy-gauge mild steel shell, which is finished with an epoxy powder coating.

• It features a refractory chamber specifically designed for high-temperature applications.

• Silicon carbide heating elements are utilized to ensure efficient heating.

• High-quality silicon boards and multiple layers of ceramic insulation are integrated to minimize heat loss.

• The system is equipped with a PID controller, which includes a CR/Ar sensor or an alternative controller that provides ramp and soak capabilities.

• The maximum achievable temperature is 1400 °C, with a recommended operational limit not exceeding 1350 °C.

• A thyristor power regulator facilitates smooth startup and precise temperature control.

• The control panel comprises an SCR power controller, MCB, fuse, along with an ammeter and voltmeter.

• Temperature accuracy is maintained within ±2 °C.
