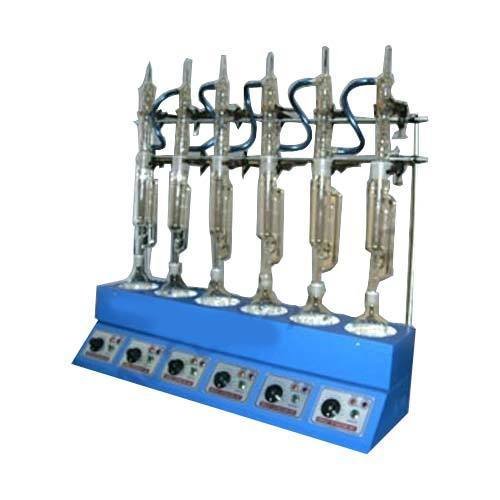

SOXHLET EXTRACTION APPARTUS

SOXHLET EXTRACTION APPARTUS

Estimated Delivery

→ Standard Laboratory equipment’s – within 7 Days others within 7 to 21 days, form the date of your Confirmed order with advance.
→ Warranty: 12 months from the date of supply against manufacturing defects. However consumables like Heating Rods, Thermocouples, Bulbs, Fuses, Switches etc., are not covered under this Warranty.
→ If Transportation and Installation needed it charges extra.

The Soxhlet apparatus operates on the principle of continuous solvent extraction. It facilitates the repeated evaporation, condensation, and siphoning of the solvent, thereby ensuring the thorough extraction of soluble components from solid samples.

Applications:

  • Sectors such as medical, agriculture, educational institutions, dairy, food and beverages, biotechnology, hospitals, chemicals, laboratories, and cement, among others, are relevant.

  • Used in extraction of active constituents from crude drugs.
  • Use for Determination of fat content in food (oil extraction).



Features:

  • Constructed from powder-coated mild steel or aluminum, featuring a corrosion-resistant finish.

  • Utilizes and incorporates an embedded nichrome wire heating coil, evenly distributed for consistent heating.

  • A circular ceramic or metal plate intended for the placement of beakers and flasks.

  • Temperature range: from ambient temperature of 37°C up to 300°C.

  • Comprises a heavy and stable heat-insulated base designed to prevent tipping.

  • Designed with a woven glass fiber mantle to securely support a round-bottom flask..

  • Incorporates heat-resistant internal insulation to minimize heat loss and safeguard the outer casing.

  • Condenser (Liebig/Allihn type): Responsible for condensing solvent vapor.

  • Designed with a woven glass fiber mantle to securely support a round-bottom flask.



TECHNICAL SPECIFICATION FOR SOXHLET EXTRACTION APPARTUS
Model No SSSEA01 SSSEA02 SSSEA03 SSSEA04
Parameter 2 Units 4 Units 6 Units 8 Units
Type Electric Soxhlet Extraction Apparatus
No. of Extraction Units 2 4 6 8
Heating Type Electric Heating Mantle System
Outer Body Powder Coated Mild Steel
Top Plate Material Stainless Steel SS304
Flask Capacity 250 ml / 500 ml
Heating Element Nichrome Wire Heating Element
Temperature Control Individual Energy Regulators
Temperature Range Ambient to 350°C
Power Rating 1000 W 2000 W 3000 W 4000 W
Extraction Assembly Borosilicate Glass Soxhlet Set
Condenser Type Water Cooled Condenser
Control Panel On/Off Switch, Indicator Lamp
Insulation High Temperature Mineral Wool
Power Supply 230 V AC, 50 Hz
Safety Protection Overheat Protection
Application Oil & Fat Extraction (Food / Chemical Labs)
