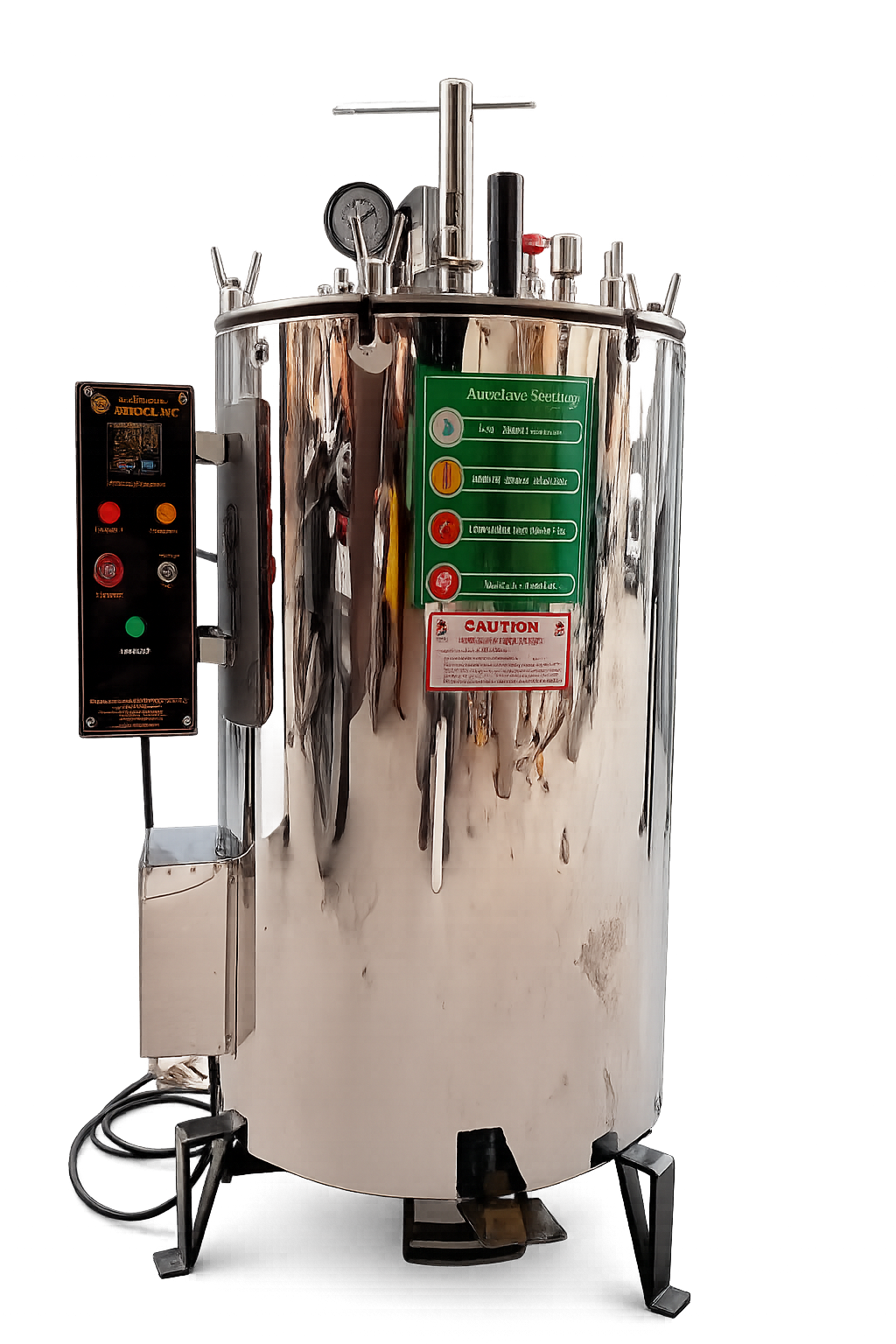

AUTOCLAVE VERTICAL
Estimated Delivery
→ Warranty: 12 months from the date of supply against manufacturing defects. However consumables like Heating Rods, Thermocouples, Bulbs, Fuses, Switches etc., are not covered under this Warranty.
→ If Transportation and Installation needed it charges extra.
Laboratory Autoclaves function by utilizing elevated temperatures and pressures to effectively eliminate microorganisms and spores. They play a crucial role in the decontamination of specific biological waste, as well as in the sterilization of media, instruments, and laboratory equipment.
Features:
- Constructed with a Triple-walled construction featuring an inner layer of stainless steel 304 and an exterior of stainless steel.
-
Enhanced insulation is provided by high-quality glass wool.
-
Manual pressure exhaust activated immediately after the automatic timer deactivates the system upon completion of the process.
-
The unit is equipped with either a digital on/off controller or a digital PID controller.
-
Temperature range: from ambient temperature of 37°C up to 121°C.
-
Accuracy: ±1°C.
-
Uniformity: ±1°C.
-
The lid is equipped with a pressure gauge, safety valve, vacuum breaker, and manual exhaust valve.
- A pressure cutoff device ensures that pressure does not exceed specified limits.
| TECHNICAL SPECIFICATION | |||||
| MODEL NO | SSHA01 | SSHA02 | SSHA03 | SSHA04 | SSHA05 |
| Internal Dimensions (inches) | 10 x 18 | 12 x 20 | 14 x 24 | 18 x 24 | 18 x 30 |
| Internal Dimensions (mm) | 250 X 450 | 300 x 500 | 350 x 600 | 450 x 600 | 450 x 750 |
| Effective Capacity | 22Ltrs | 40Ltrs | 50Ltrs | 100Ltrs | 125Ltrs |
| Shelves or Tray Capacity | 1 | 1 | 1 | 1 | 1 |
| Ratings (Kw) | 3 | 3 | 3 | 4.5 | 4.5 |
| Exterior Finish | Epoxy Powder Coated / SS 304 / SS 316 | ||||
| Interior Finish | SS 304/306/310/316L | ||||
| Insulation | Ceramic Wool / Glass Wool | ||||
| Heating System | W Type Immersed Water Heaters | ||||
| Continuous Operating Temperature | 121° C | ||||
| Maximum Operating Temperature | 135° C | ||||
| Temperature Control Systems | PID | ||||
| Sensor | J Type or RTD Thermocouple | ||||
| Temperature Settings | Digital | ||||
| Temperature / Timer Display | Digital | ||||
| Air Circulation | Available by Fan motor for Temperature Uniformity | ||||
| Panel Board Consist of | Electrical Components like Indication Bulbs, Switch, Relay and MCB | ||||
| Temperature Control Systems | Inntech, Selectron, Autonics, Multispan | ||||
| Power Source | 220 v , Single Phase , 50Hz | ||||
| Alarm and Safety Function | Optional | ||||
| Data Logging Facility | Optional | ||||
| IQ/OQ/QP | Optional | ||||
| Warranty | One Year Warranty. If any Manufacturing Defects | ||||
| Calibration Certificate | Optional | ||||
