ELECTRIC HEATING MANTLE

Estimated Delivery

→ Standard Laboratory equipment’s – within 7 Days others within 7 to 21 days, form the date of your Confirmed order with advance.
→ Warranty: 12 months from the date of supply against manufacturing defects. However consumables like Heating Rods, Thermocouples, Bulbs, Fuses, Switches etc., are not covered under this Warranty.
→ If Transportation and Installation needed it charges extra.

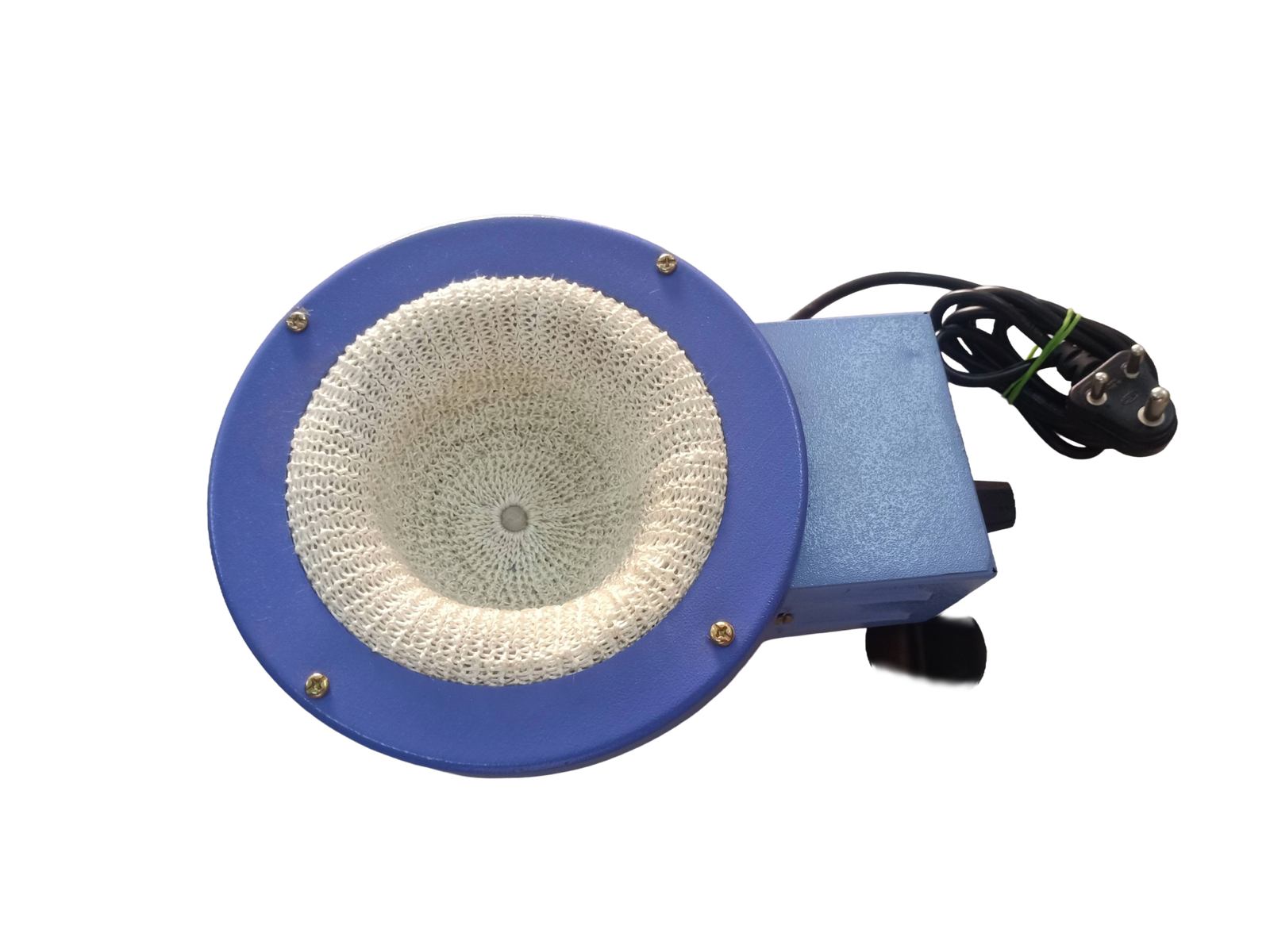

An Electric Heating Mantle is a laboratory heating device specifically designed for the uniform heating of round-bottom flasks. It offers a safe alternative to open flames, making it particularly valuable in chemistry laboratories for applications such as distillation, reflux, and organic synthesis.

Applications:

Sectors such as medical, agriculture, educational institutions, dairy, food and beverages, biotechnology, hospitals, chemicals, laboratories, and cement, among others, are relevant.
Used in chemical reactions in Pharma & chemical Industry.
Use for Sterilizing instruments, glassware and plasticware Suitable for Lab.

Features:

Constructed from powder-coated mild steel or aluminum, featuring a corrosion-resistant finish.
Utilizes and incorporates an embedded nichrome wire heating coil, evenly distributed for consistent heating.
A circular ceramic or metal plate intended for the placement of beakers and flasks.
Temperature range: from ambient temperature of 37°C up to 300°C.
Comprises a heavy and stable heat-insulated base designed to prevent tipping.
Designed with a woven glass fiber mantle to securely support a round-bottom flask..
Incorporates heat-resistant internal insulation to minimize heat loss and safeguard the outer casing.
Rigid housing that includes ventilation slots for effective heat dissipation.
Designed with a woven glass fiber mantle to securely support a round-bottom flask.

TECHNICAL SPECIFICATION FOR ELECTRIC HEATING MANTLES
Parameter	100 ml	250 ml	500 ml	1000 ml	2000 ml	3000 ml	5000 ml
Type	Electric Heating Mantle
Capacity	100 ml Flask	250 ml Flask	500 ml Flask	1000 ml Flask	2000 ml Flask	3000 ml Flask	5000 ml Flask
Temperature Range	Ambient to 350°C
Temperature Control	Energy Regulator / PID Controller
Heating Element	Nichrome Wire Heating Element
Mantle Material	Glass Fiber Yarn
Outer Body	Powder Coated MS / Aluminum
Insulation	High Temperature Mineral Wool
Inner Surface	Glass Fiber Fabric
Controller Type	Variable Energy Regulator
Temperature Uniformity	±5°C
Power Rating	100 W	150 W	250 W	350 W	450 W	600 W	1000 W
Power Supply	230V AC, 50 Hz
Safety Protection	Thermal Protection
Control Panel	On/Off Switch & Indicator
Applications	Chemical & Laboratory Heating
Warranty	One Year Warranty. If any Manufacturing Defects
