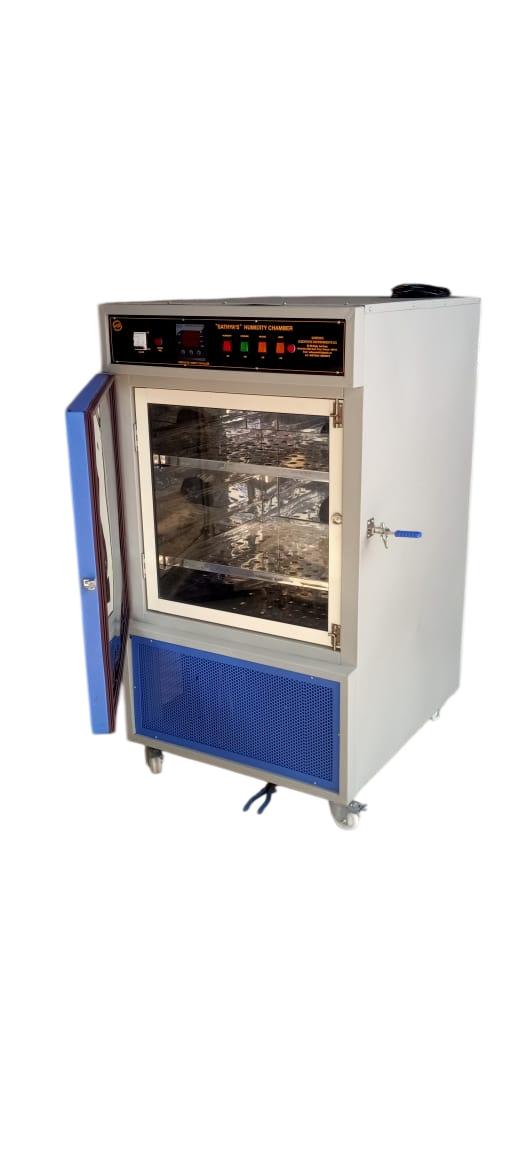

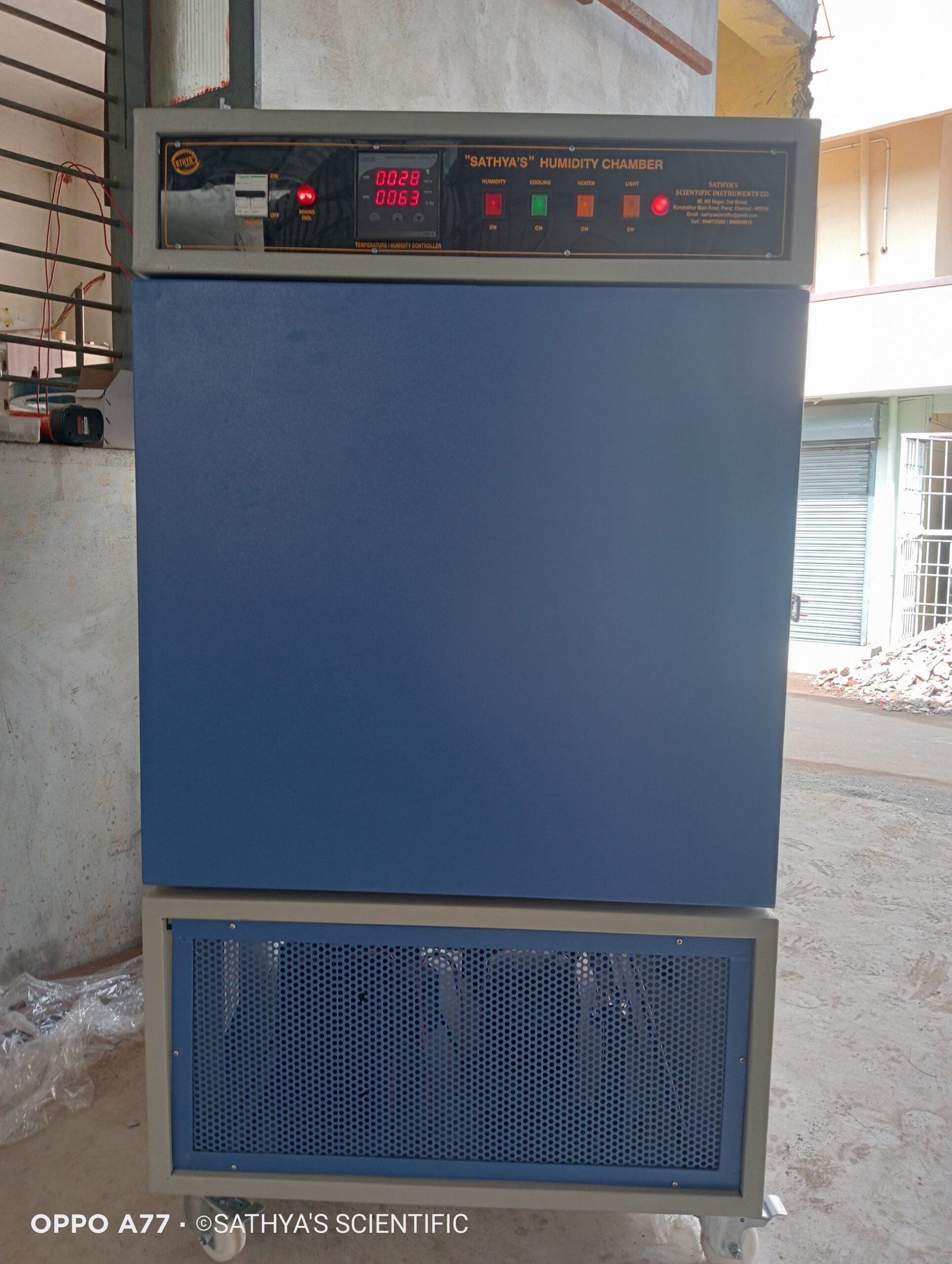

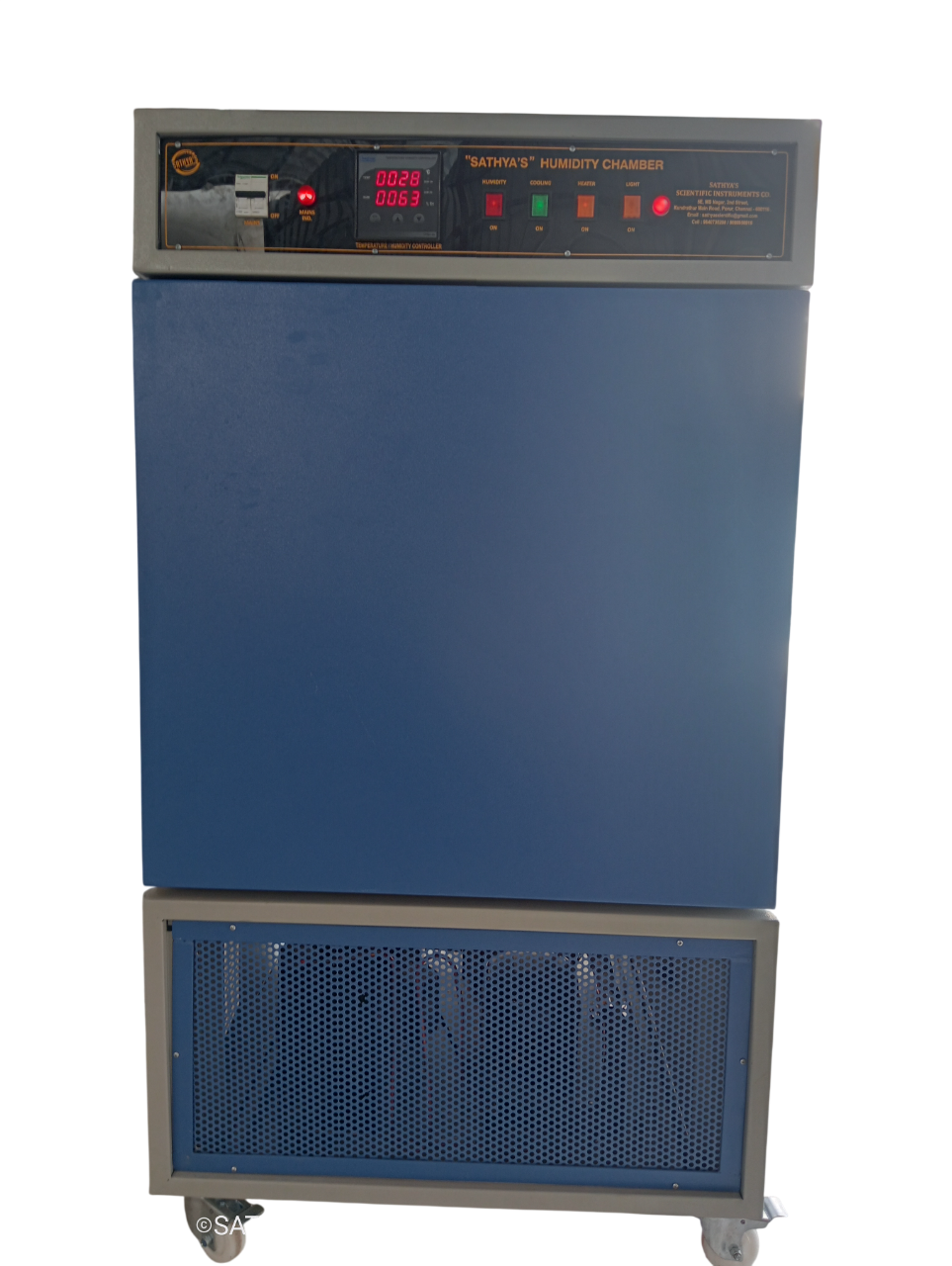

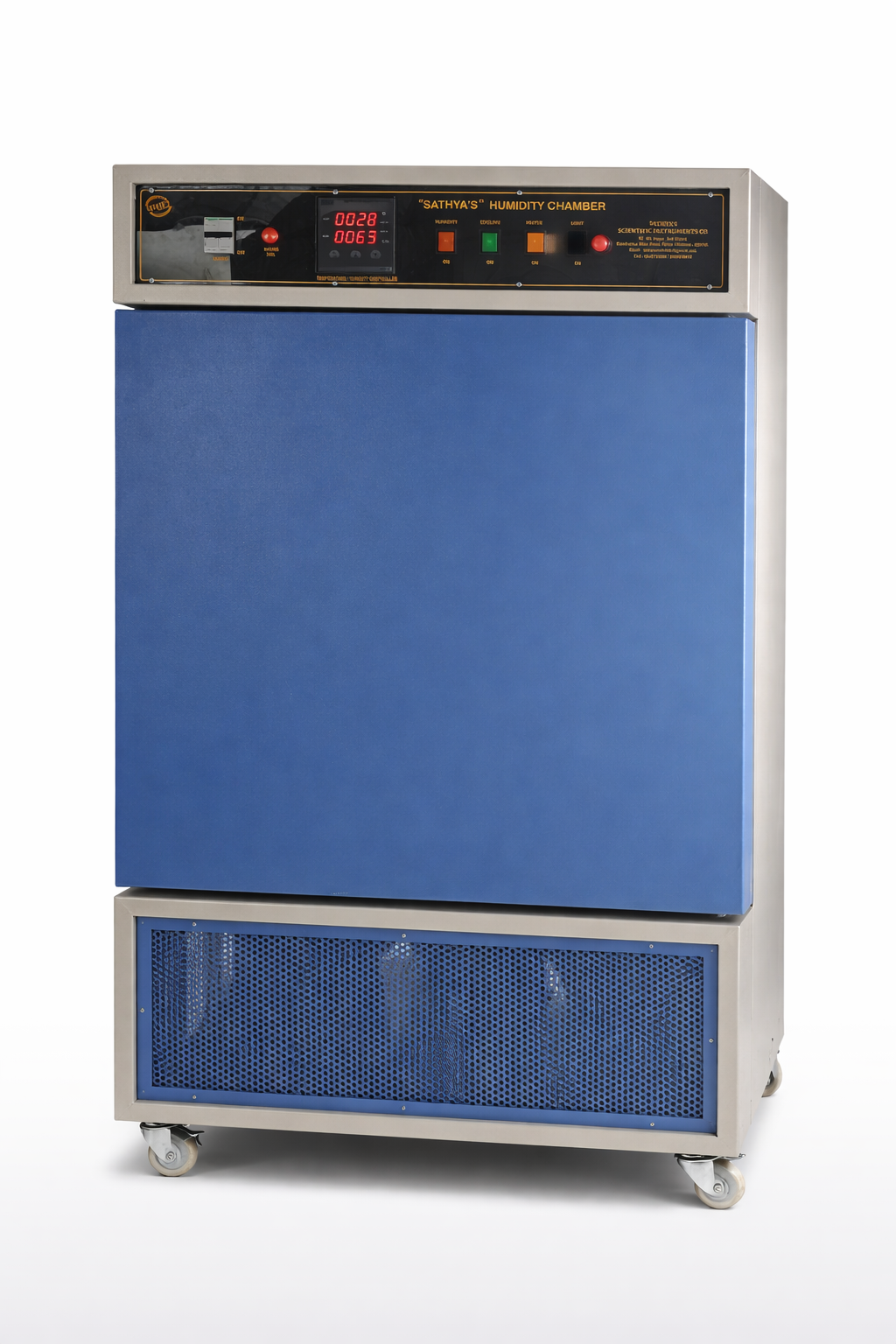

Dual-controlled temperature and relative humidity test chamber for ICH stability testing, shelf-life testing, and electronics packaging.
| MODEL NO | SSHC01 | SSHC02 | SSHC03 | SSHC04 | SSHC05 |
| External Dimensions (mm) | 1440 x 710 x 840 | 1540 x 800 x 960 | 1650 x 780 x 1030 | 1650 x 780 x 1130 | 1650 x 1650 x 1650 |
| Internal Dimensions (mm) | 810 x 510 x 460 | 900 x 600 x 560 | 900 x 600 x 600 | 600 x 600 x 600 | 900 x 900 x 900 |
| Effective Capacity | 6 Cu.ft 170Ltrs | 10 Cu.ft 285Ltrs | 12 Cu.ft 342Ltrs | 16 Cu.ft 400Ltrs | 18 Cu.ft 462Ltrs |
| Shelves or Tray Capacity | 2 | 2 | 3 | 4 | 4 |
| Ratings (Kw) | 1.5 | 1.75 | 2 | 2.75 | 2.75 |
| Exterior Finish | Epoxy Powder Coated / SS 304 / SS 316 |
| Interior Finish | SS 304/316/310/316L |
| Insulation | Polyurethane Foam |
| Heating System | U Type Air Heaters |
| Continuous Operating Temperature | 37° C |
| Maximum Operating Temperature | 60° C |
| Temperature Control Systems | Inntech, Selectron, Autonics, Multispan |
| Sensor | RTD Thermocouple |
| Temperature Settings | Digital |
| Temperature / Timer Display | Digital |
| Air Circulation | Available by Fan motor for Temperature Uniformity |
| Panel Board Consist of | Electrical Components like Indication Bulbs, Switch, Relay and MCB |
| Power Source | 220 v , Single Phase , 50Hz |
| Alarm and Safety Function | Optional |
| Data Logging Facility | Optional |
| IQ/OQ/PQ | Optional |
| Warranty | 12 months from the date of supply against manufacturing defects. |
| Calibration Certificate | Optional |
Our Stability Humidity Chamber provides controlled environmental conditions adhering to ICH Q1A guidelines. Equipped with ultrasonic humidity generator / steam boiler, imported humidity sensors, hermetic refrigeration unit, and PID microprocessor control with high accuracy.
