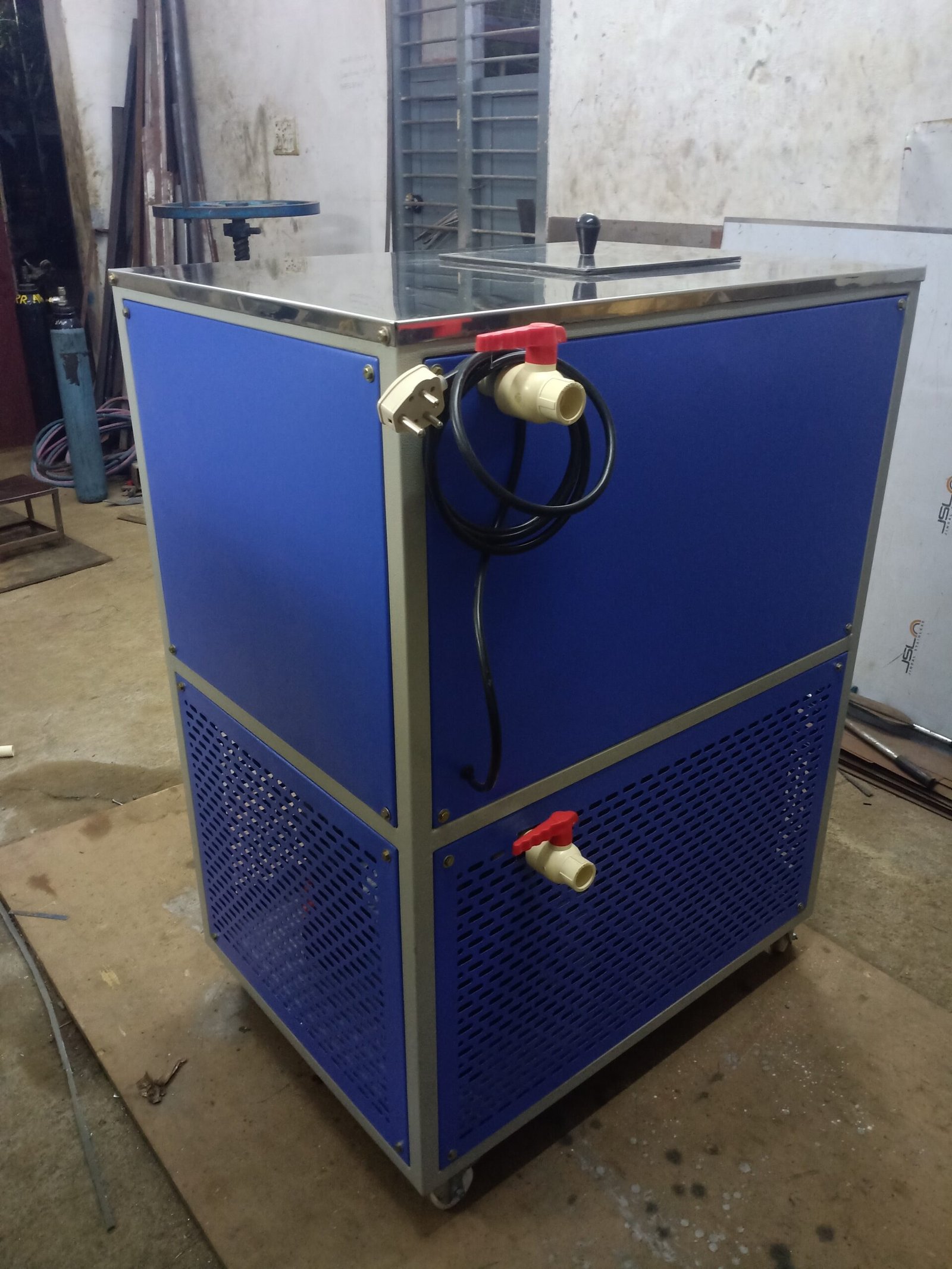

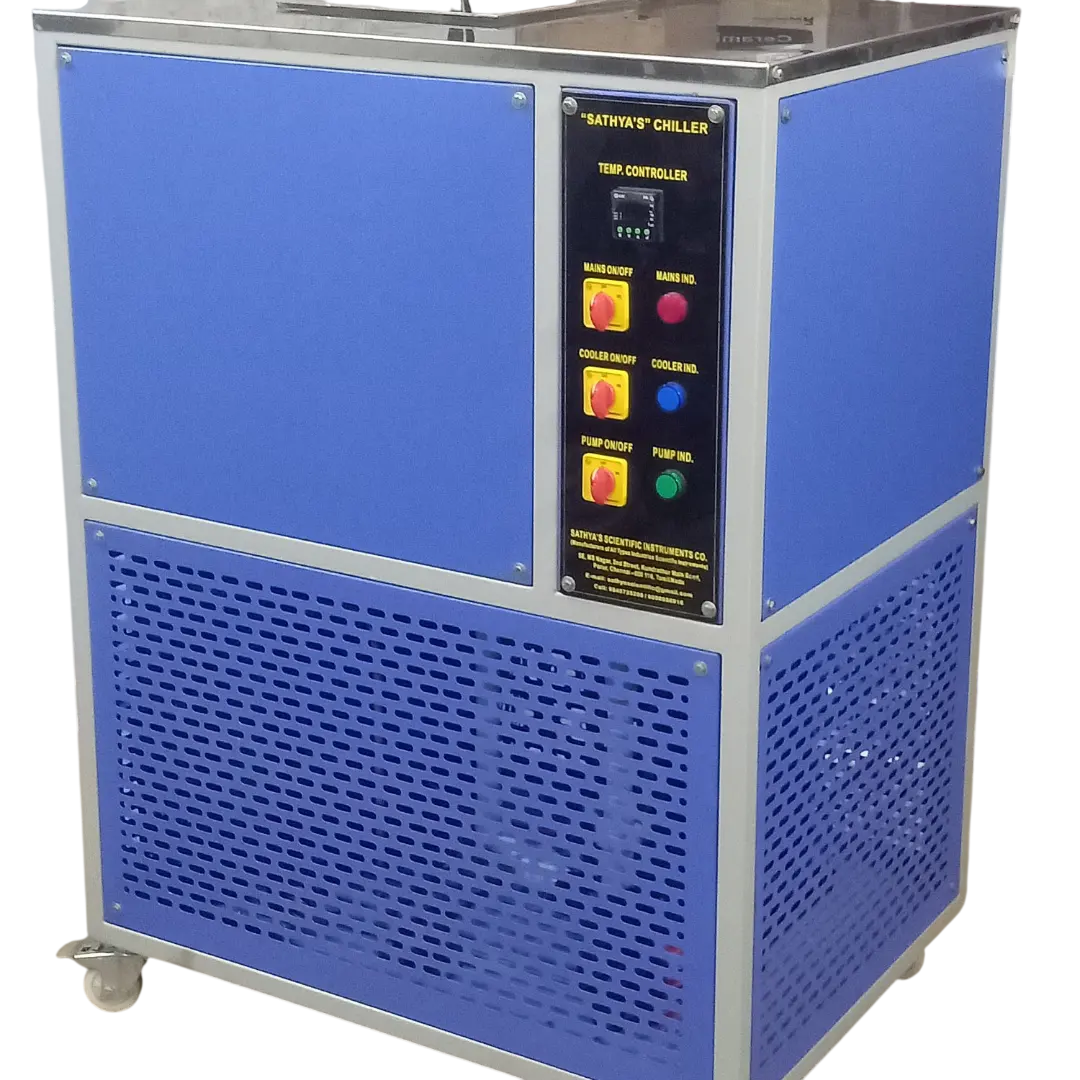

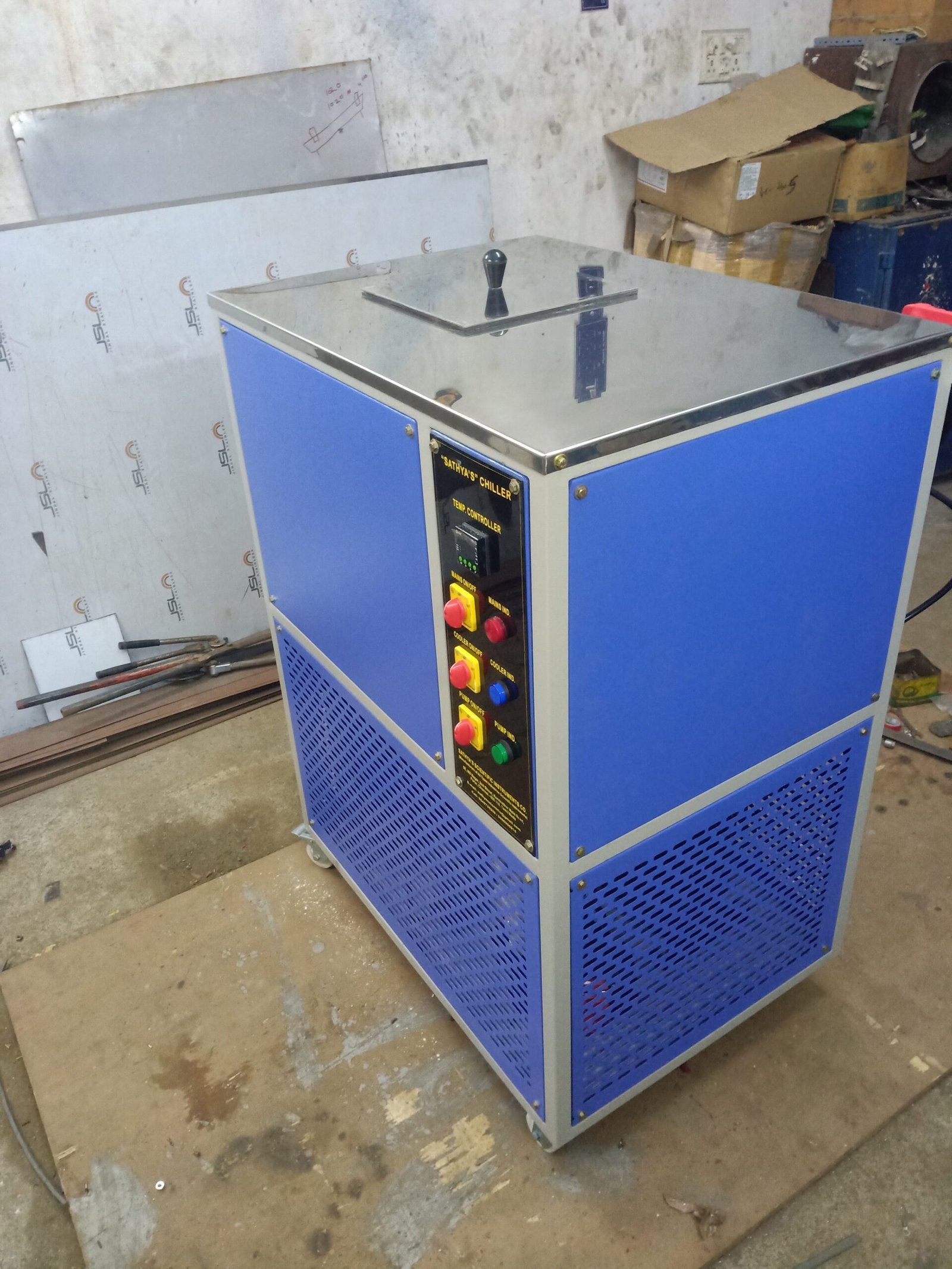

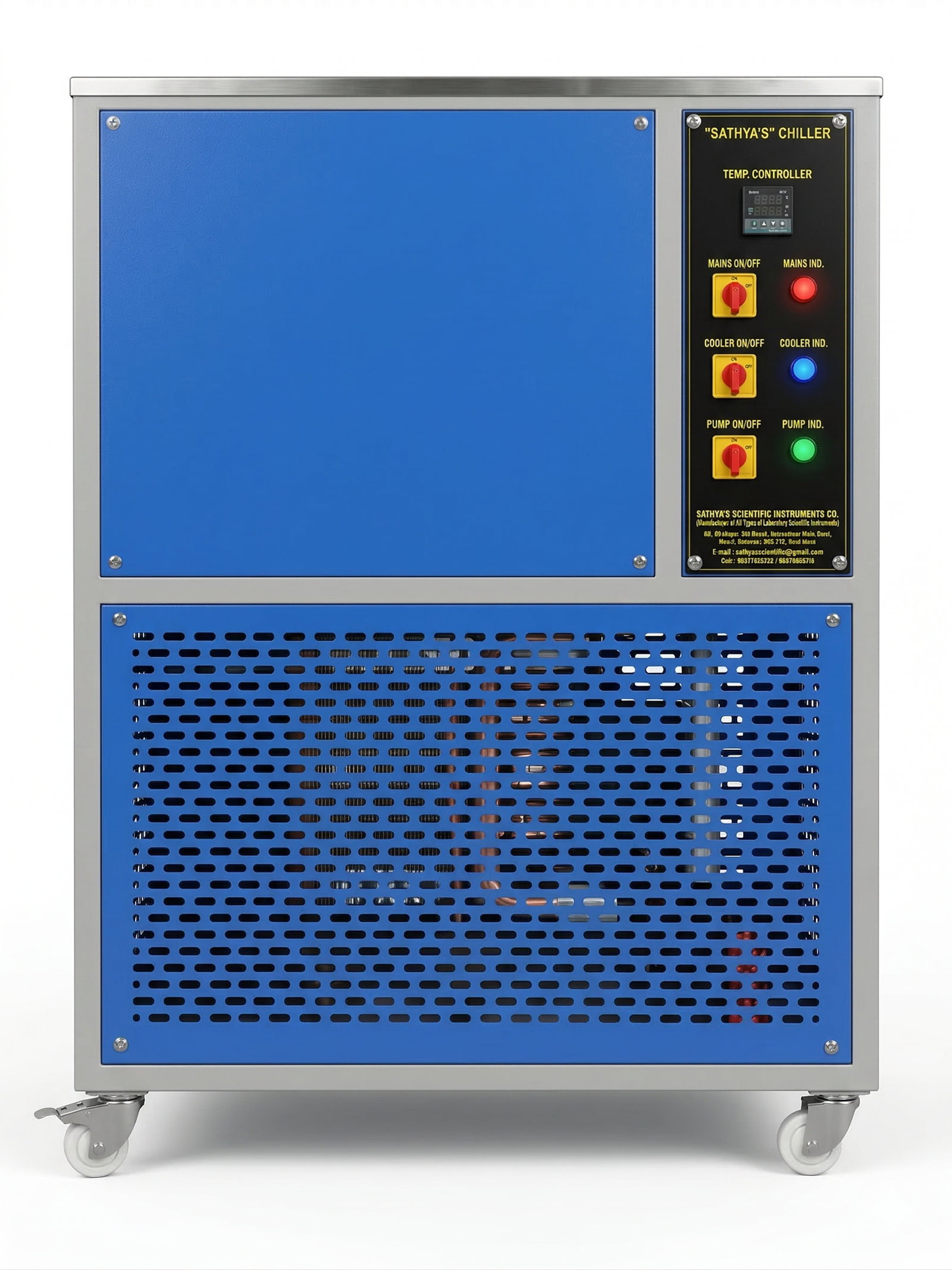

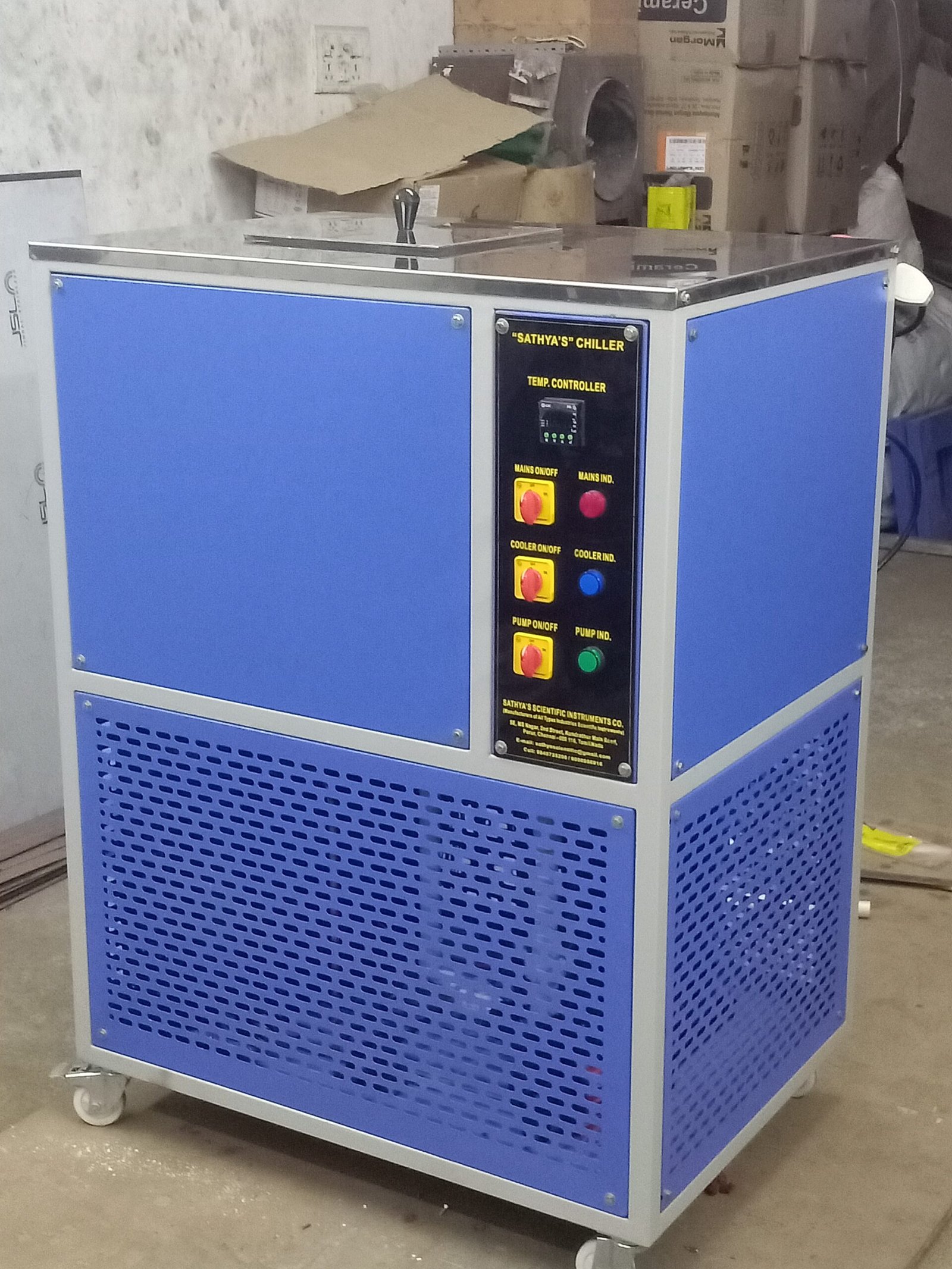

LABORATORY CHILLER
LABORATORY CHILLER - Image 2
LABORATORY CHILLER - Image 3
LABORATORY CHILLER - Image 4
LABORATORY CHILLER - Image 5

LABORATORY CHILLER

Estimated Delivery

→ Standard Laboratory equipment’s – within 7 Days others within 7 to 21 days, form the date of your Confirmed order with advance.
→ Warranty: 12 months from the date of supply against manufacturing defects. However consumables like Heating Rods, Thermocouples, Bulbs, Fuses, Switches etc., are not covered under this Warranty.
→ If Transportation and Installation needed it charges extra.

Laboratory Chillers function within a closed circuit, facilitating the continuous reuse of water and significantly reducing waste. Furthermore, recent guidelines have been instituted to safeguard the quality of the water utilized and to ensure the proper discharge of contaminated water into the environment.



Features:

  • Constructed from heavy-gauge mild steel, finished with a durable epoxy powder coating.

  • The inner tank is made of stainless steel 304 (SS 304).

  • Cooling is facilitated by a hermetically sealed compressor and an overload motor pump, ensuring precise temperature control.

  • The unit is equipped with either a digital on/off controller or a digital PID controller.

  • Temperature range: from ambient temperature of 5°C up to 121°C.

  • Accuracy: ±1°C.

  • The unit is equipped with a PID controller that incorporates an RTD sensor or a controller capable of both heating and cooling functions.

  • The lid is equipped with a pressure gauge, safety valve, vacuum breaker, and manual exhaust valve.

  • The corrosion-resistant SS 304 (AISI 304) tank is designed for ease of cleaning and maintenance.

  • It utilizes CFC-free refrigerant.



TECHNICAL SPECIFICATION FOR LAB CHILLER
Model No SSLC01 SSLC02 SSLC03 SSLC04
Parameter 1 TR 2 TR 3 TR 5 TR
Type Recirculating Laboratory Water Chiller
Cooling Capacity 1 Ton (3.5 kW) 2 Ton (7 kW) 3 Ton (10.5 kW) 5 Ton (17.5 kW)
Temperature Range 5°C to 25°C
Temperature Control Digital PID Controller
Temperature Accuracy ±1°C
Refrigeration System Hermetically Sealed Compressor
Refrigerant R134a / R410a
Cooling Type Air Cooled Condenser
Water Tank Capacity 20 Litres 40 Litres 60 Litres 100 Litres
Circulation Pump High Pressure Recirculating Pump
Flow Rate 10 L/min 20 L/min 30 L/min 50 L/min
Heat Exchanger Stainless Steel Coil
Construction Powder Coated Mild Steel
Control Panel Digital Temperature Display & Controls
Safety Protection Overload & High Pressure Protection
Power Supply 230V / 415V AC, 50 Hz
Application Cooling for Laboratory Equipment
