Crafted with lightweight ceramic fiber insulation and premium grade Kanthal A1 heating elements wound around or embedded in ceramic muffle chambers. Rapid heating rates with minimal heat loss and cool outer surface temperatures.

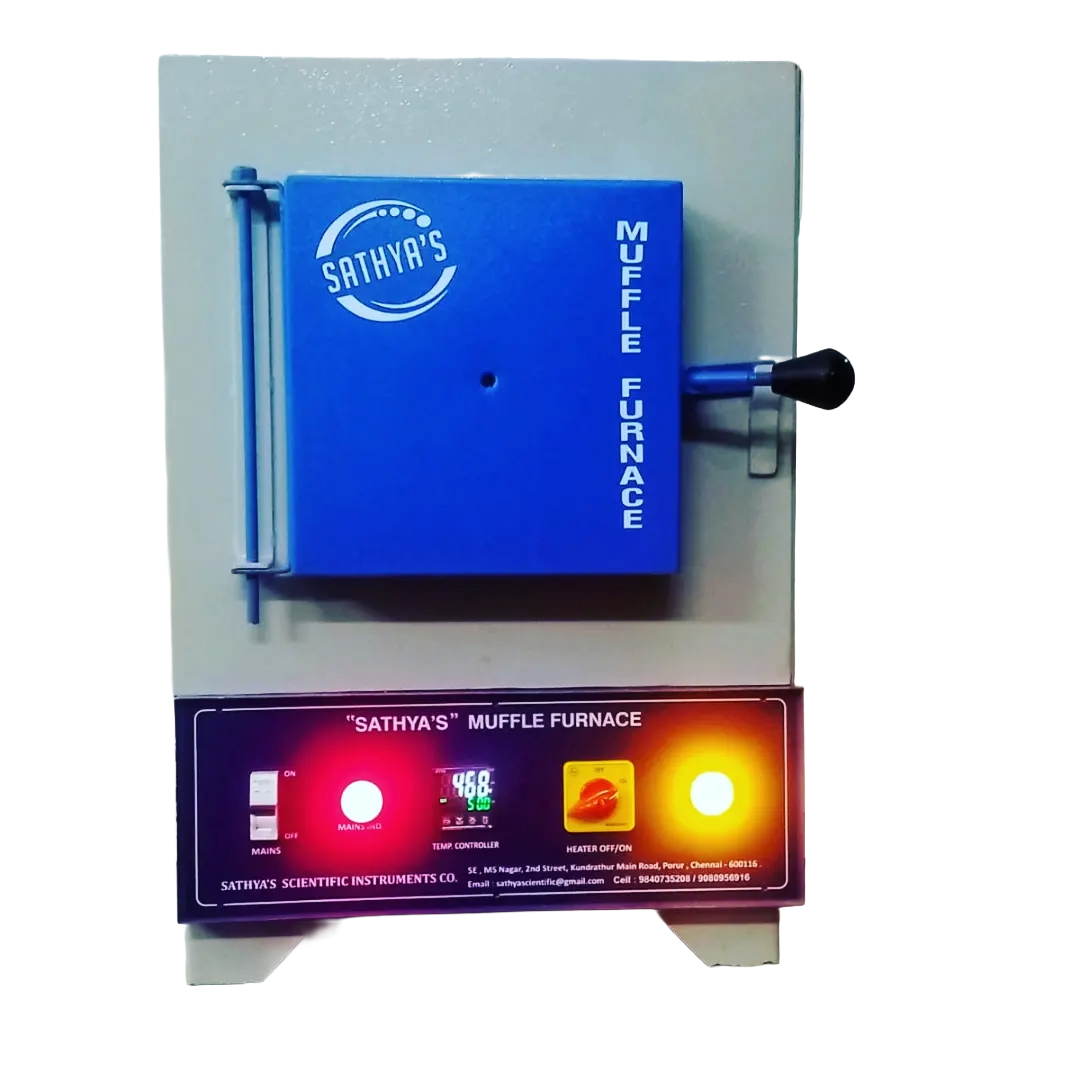

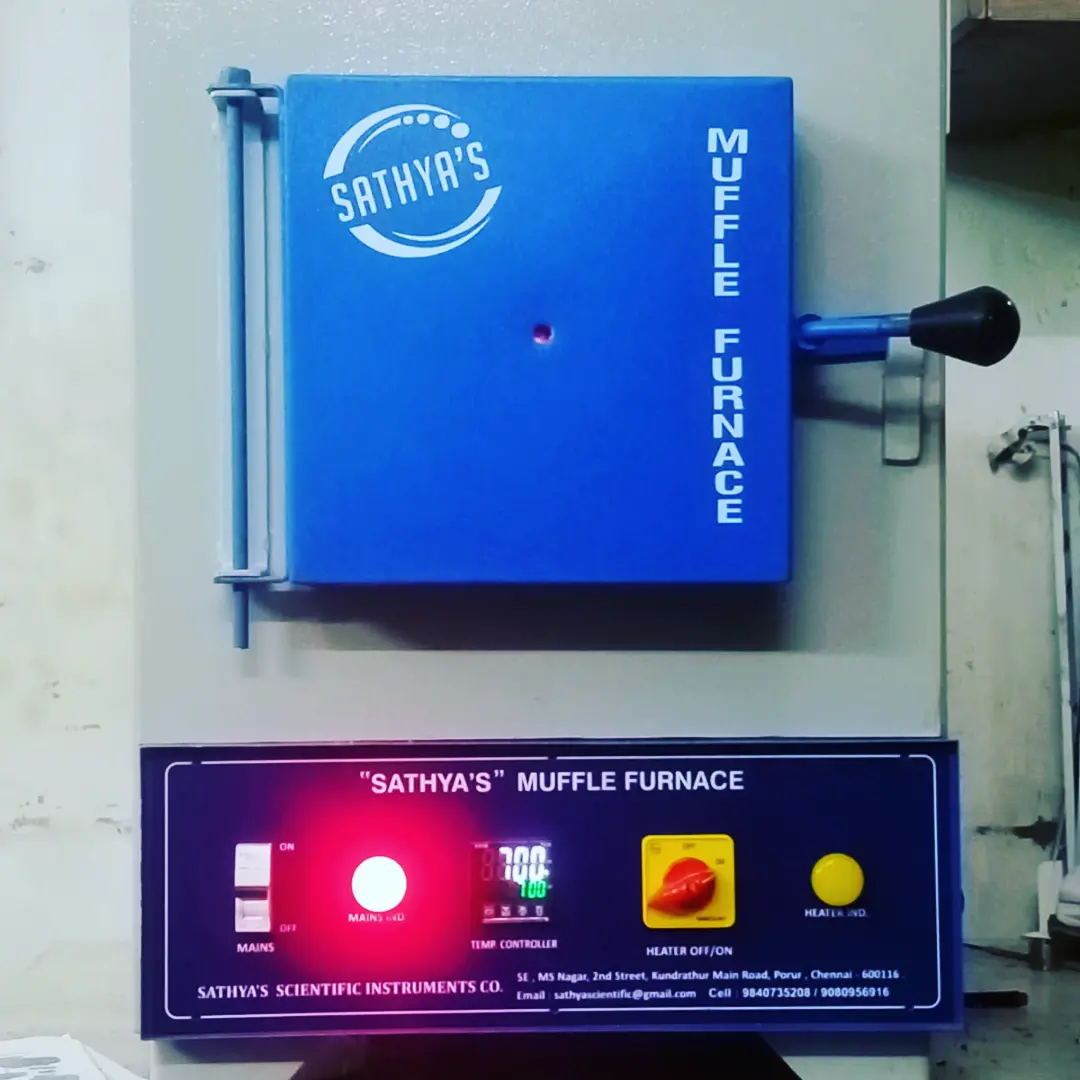

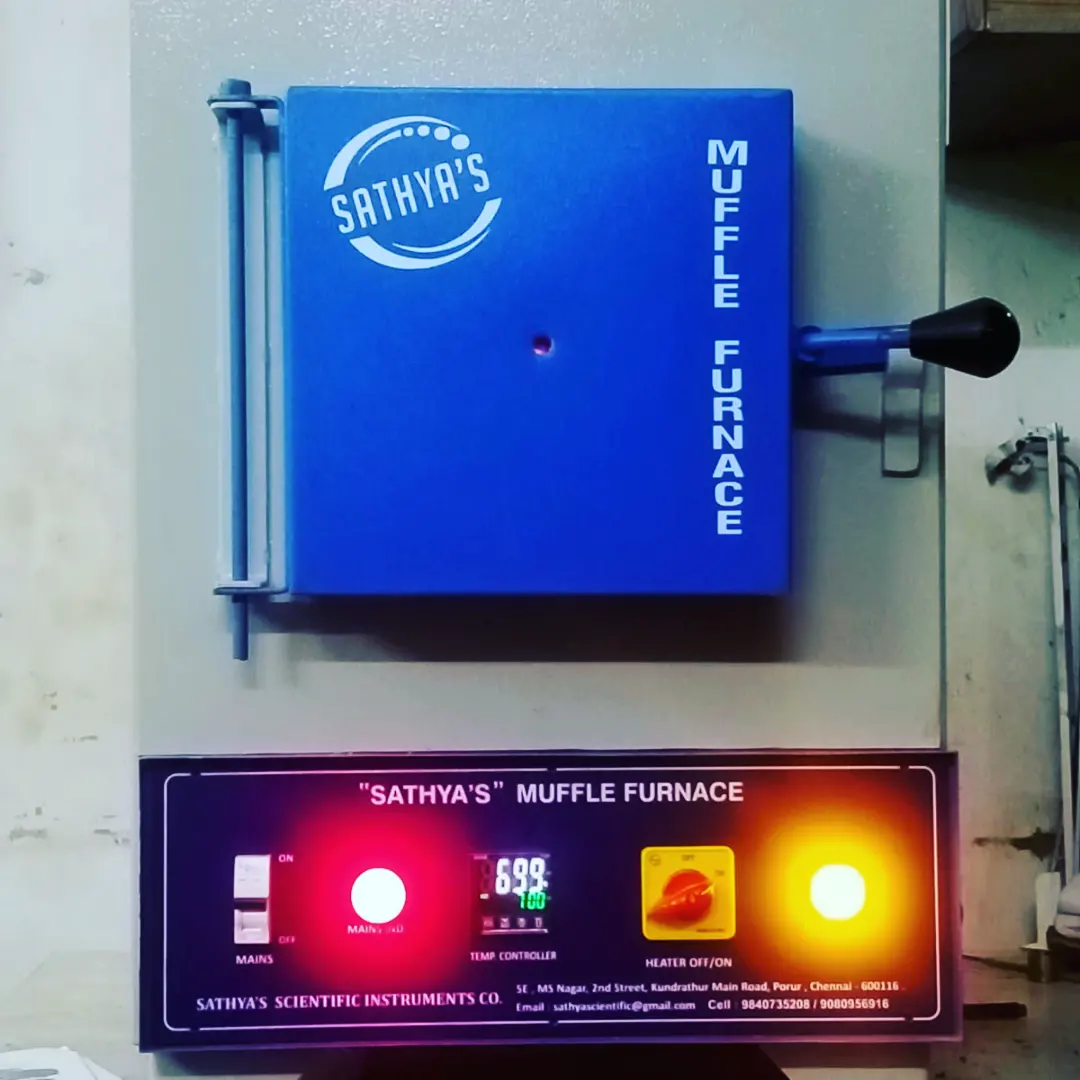

High-temperature chamber muffle furnace for ashing, heat treatment, sintering, and gravimetric chemical analysis.
| MODEL NO | SSMF01 | SSMF02 | SSMF03 | SSMF04 | SSMF05 |
| Internal Dimensions (inches) | 4 x 4 x 9 | 5 x 5 x 10 | 6 x 6 x 12 | 8 x 8 x 12 | 12 x 12 x 12 |
| Internal Dimensions (mm) | 100 x 100 x 225 | 125 x 125 x 250 | 150 x 150 x 300 | 200 x 200 x 300 | 300 x 300 x 300 |
| Ratings (Kw) | 3 | 3 | 4 | 4.5 | 7 |
| Exterior Finish | Epoxy Powder Coated / SS 304 / SS 316 |
| Interior Finish | Sillimanite Muffle |
| Insulation | Ceramic Pads |
| Heating System | Coil Typed Kanthal A1 |
| Continuous Operating Temperature | 900° C |
| Maximum Operating Temperature | 1150° C |
| Temperature Control Systems | PID |
| Sensor | K Type |
| Temperature Settings | Digital |
| Temperature / Timer Display | Digital |
| Heater Shealth Heater | Yes |
| Power Source | 220 v , Single Phase , 50Hz |
| Alarm and Safety Function | Optional |
| Data Logging Facility | Optional |
| IQ/OQ/PQ | Optional |
| Calibration Certificate | Optional |
Crafted with lightweight ceramic fiber insulation and premium grade Kanthal A1 heating elements wound around or embedded in ceramic muffle chambers. Rapid heating rates with minimal heat loss and cool outer surface temperatures.
