Engineered for component curing, varnish baking, moisture extraction, and industrial thermal conditioning with dual fan air circulation and heavy duty motorized exhaust.

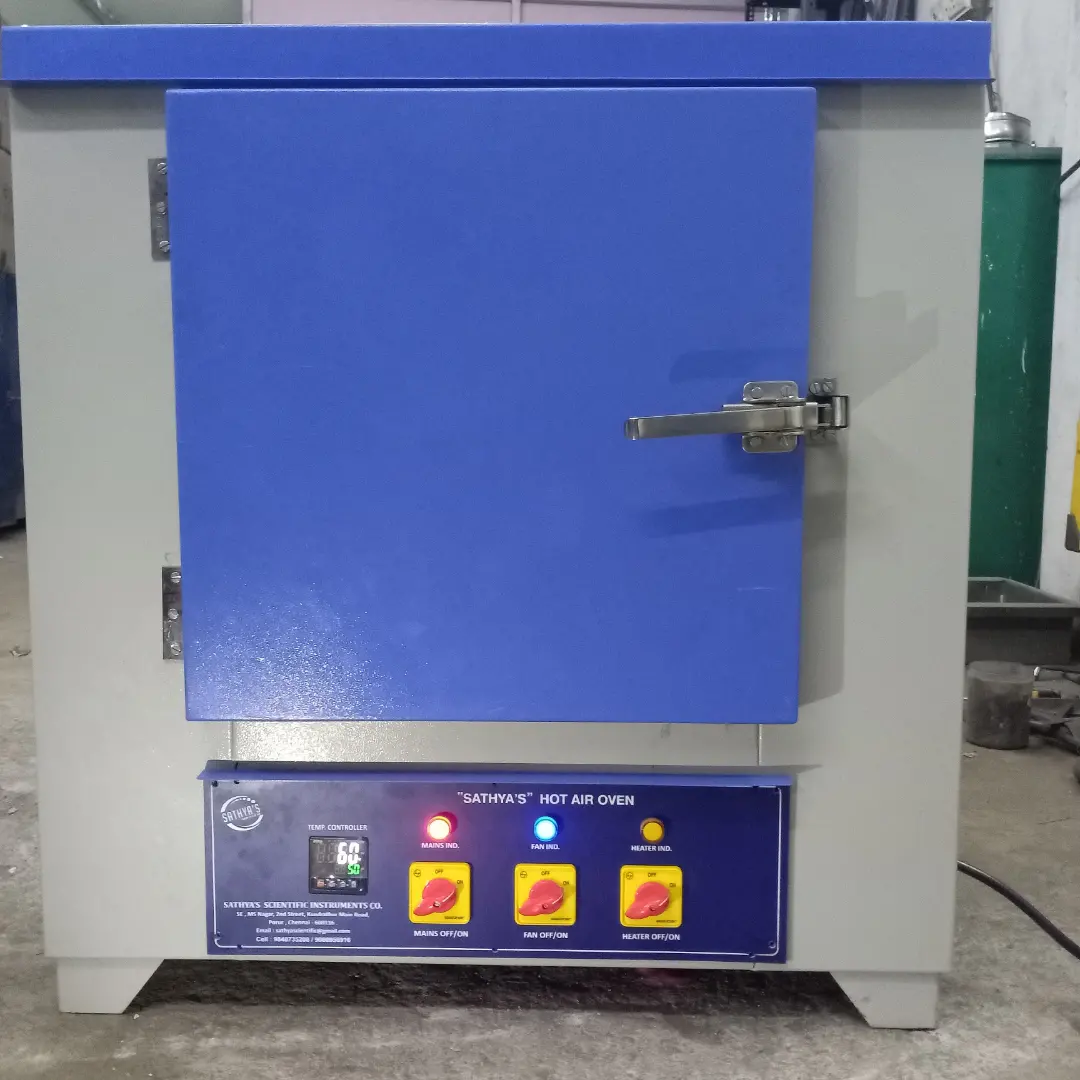

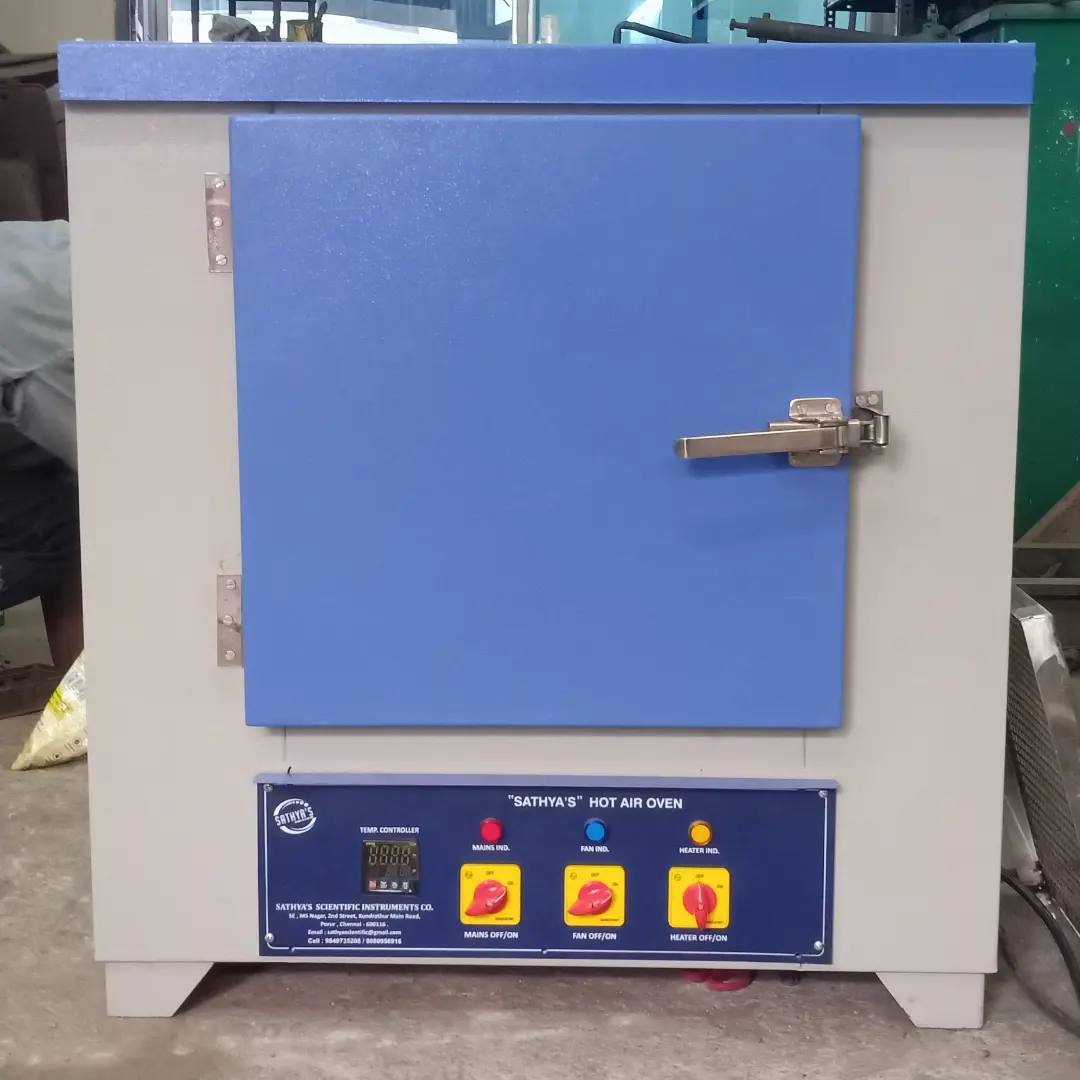

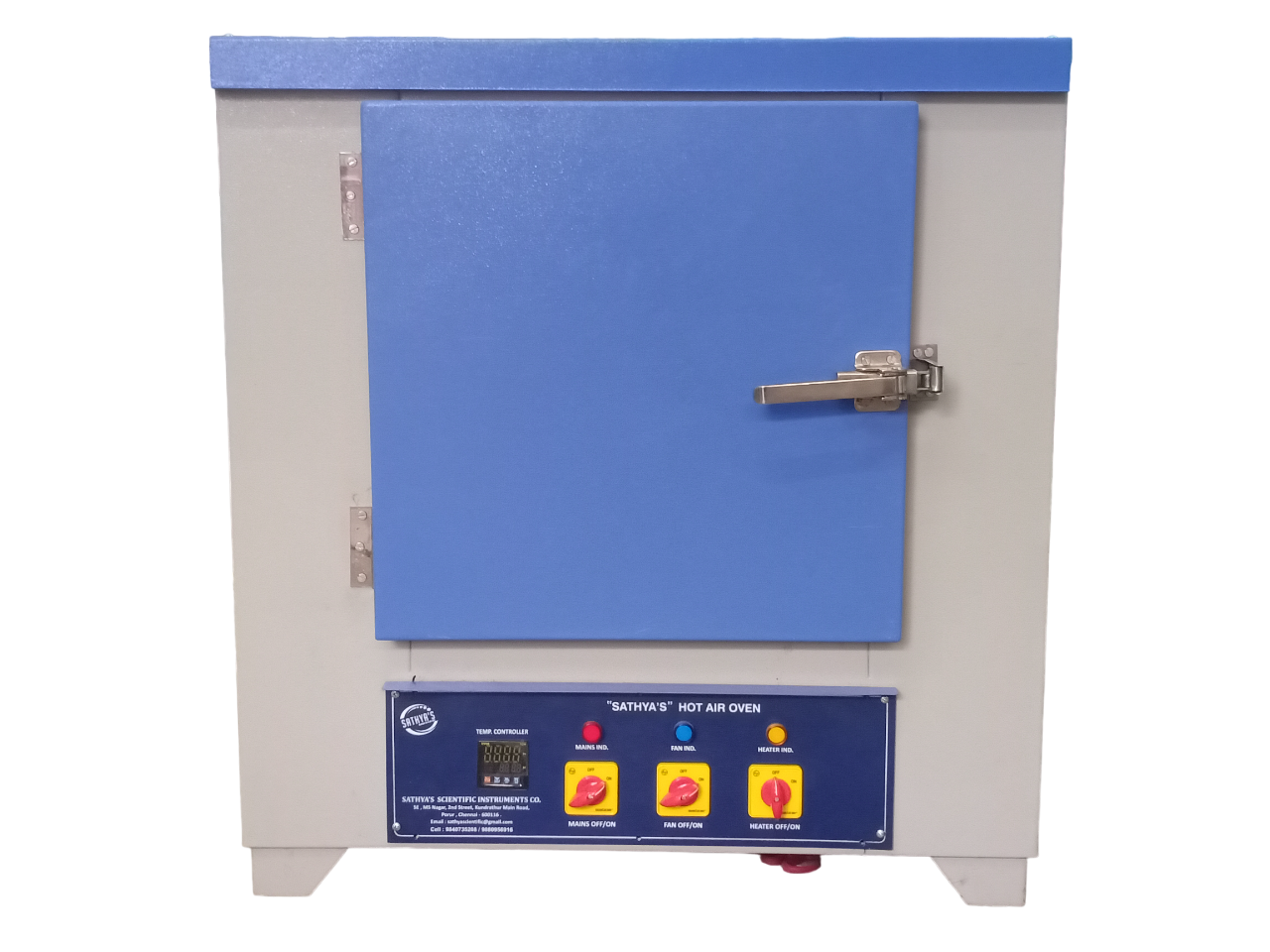

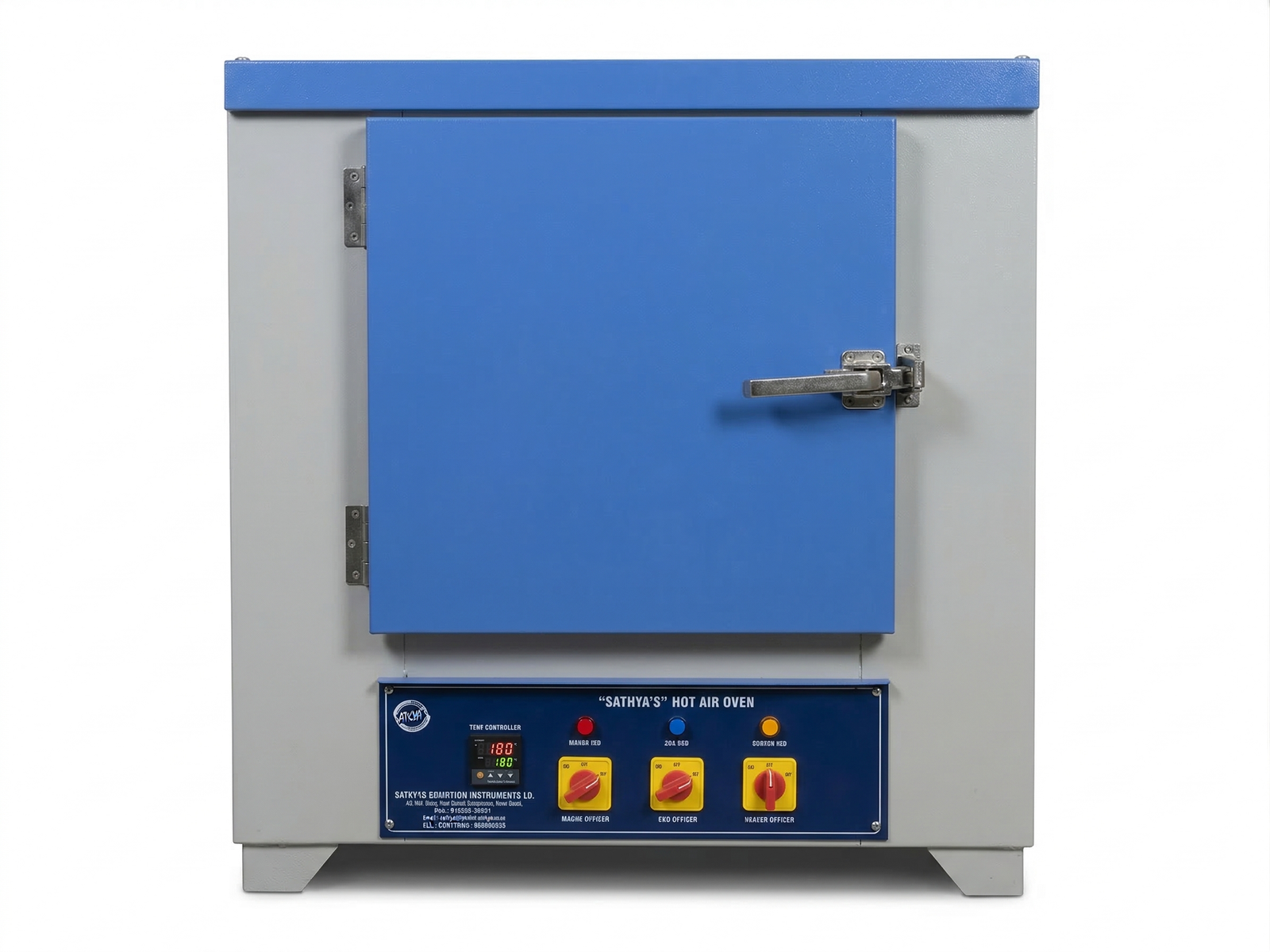

High capacity industrial drying and baking oven operating continuously up to 350°C.
| MODEL NO | SSMHTO01 | SSMHTO02 | SSMHTO03 | SSMHTO04 | SSMHTO05 |
| Internal Dimensions (inches) | 12 x 12 x 12 | 14 x 14 x 14 | 18 x 18 x 18 | 24 x 24 x 24 | 24 x 24 x 36 |
| Internal Dimensions (mm) | 300 x 300 x 300 | 350 x 350 x 350 | 450 x 450 x 450 | 600 x 600 x 600 | 600 x 600 x 900 |
| Effective Capacity | 1.6 Cu.ft 45Ltrs | 2.7 Cu.ft 75Ltrs | 4.5 Cu.ft 128Ltrs | 8 Cu.ft 226Ltrs | 12 Cu.ft 342Ltrs |
| Shelves or Tray Capacity | 1 | 2 | 2 | 4 | 5 |
| Ratings (Kw) | 1.5 | 2.5 | 3 | 4.5 | 6 |
| Exterior Finish | Epoxy Powder Coated / SS 304 / SS 316 |
| Interior Finish | SS 304/316/310/316L |
| Insulation | Ceramic Wool / Glass Wool |
| Heating System | U Type Air Heaters |
| Continuous Operating Temperature | 350° C |
| Maximum Operating Temperature | 400° C |
| Temperature Control Systems | Inntech, Selectron, Autonics, Multispan |
| Sensor | J Type or RTD Thermocouple |
| Temperature Settings | Digital |
| Temperature / Timer Display | Digital |
| Air Circulation | Available by Fan motor for Temperature Uniformity |

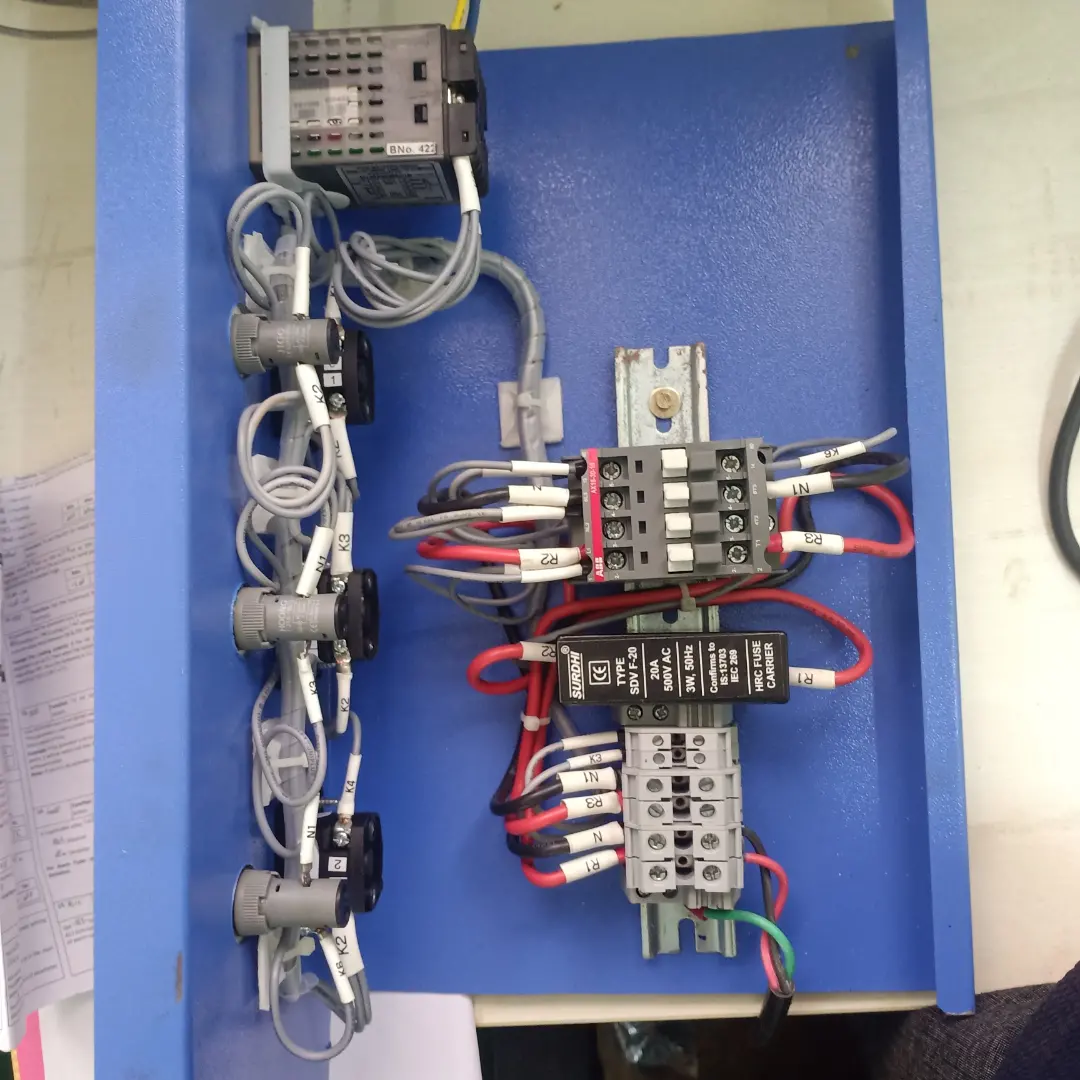

| Panel Board Consist of | Electrical Components like Indication Bulbs, Switch, Relay and MCB |
| Power Source | 220 v , Single Phase , 50Hz |
| Alarm and Safety Function | Optional |
| Data Logging Facility | Optional |
| IQ/OQ/PQ | Optional |
| Warranty | 12 months from the date of supply against manufacturing defects. |
| Calibration Certificate | Optional |
Engineered for component curing, varnish baking, moisture extraction, and industrial thermal conditioning with dual fan air circulation and heavy duty motorized exhaust.
